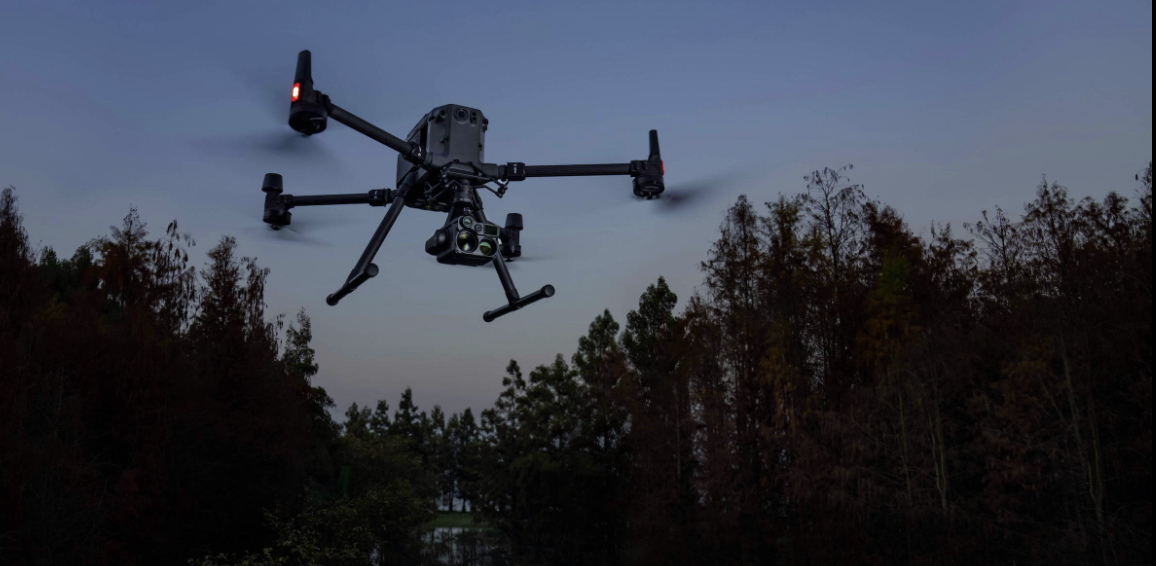

“N” for Night Vision
The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
Sensors Upgraded Across Multiple Dimensions
Infrared Zoom
Dual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm)
8x Zoom (Equivalent Focal Length: 196 mm)
See the Big Picture
Night Vision Wide Camera
Starlight Sensor: 2MP
Stronger Low-Light Performance
Pierce Through the Veil
Night Vision Zoom Camera
Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom
Low-Light Details
Precise Distance Data
Laser Rangefinder
Range: 3 m to 1200 m
Accuracy: ± (0.2 m + D×0.15%)2

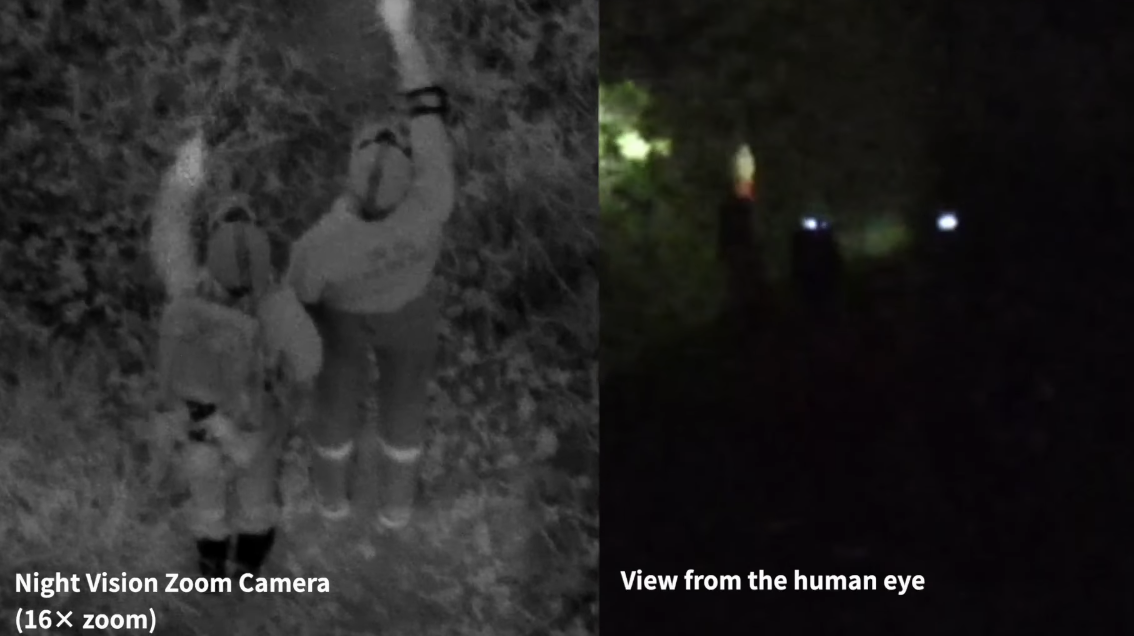

See Through the Night
The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

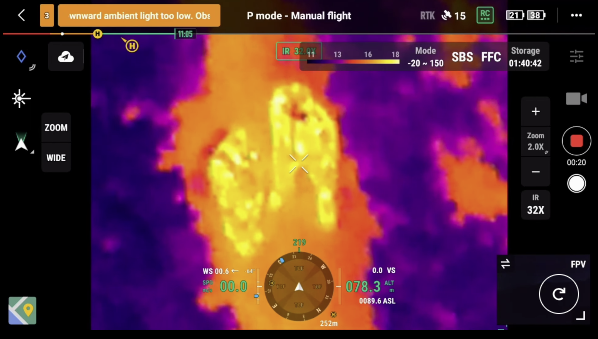

Infrared Zoom
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.

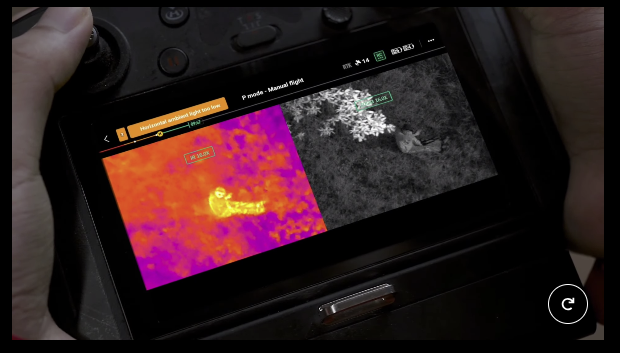

Synchronized Split-screen Zoom
H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.
DJI Zenmuse H20N Overview
The DJI Zenmuse H20N is an advanced multi-sensor payload specifically designed for night operations and low-light scenarios. Building on the capabilities of the H20 Series, the H20N integrates cutting-edge imaging technologies, making it ideal for search and rescue missions, inspections, and surveillance in challenging lighting conditions. Explore the best DJI Zenmuse H20N price in Bangladesh.
Key Features:
- Dual-Lens Configuration: The H20N features both a low-light zoom camera and a high-resolution wide-angle camera, allowing for versatile imaging capabilities in various environments.
- High Sensitivity Night Vision: Equipped with advanced night vision technology, the H20N can capture detailed images and video in total darkness, making it ideal for nighttime operations.
- 20x Optical Zoom: The zoom camera provides up to 20x optical zoom, enabling users to observe distant subjects clearly, even in low light.
- 4K Video Recording: Captures crisp, high-definition video at resolutions up to 4K, ensuring detailed visual documentation.
- Integrated Laser Rangefinder: Measures distances up to 1,200 meters, providing precise distance measurements to complement visual data.
- AI-Powered Features: Advanced AI capabilities enhance target tracking, object recognition, and automated data collection, streamlining operations and reducing manual input.
- Durable Design: Built to withstand harsh environmental conditions, the Zenmuse H20N is IP44 rated for water and dust resistance.
- Seamless Integration: Compatible with DJI’s Matrice 300 RTK drone, ensuring quick installation and effective operation for various aerial missions.
The DJI Zenmuse H20N is an excellent choice for professionals needing reliable imaging solutions in low-light conditions, enhancing situational awareness and operational efficiency in critical applications.
General
Product Name
Zenmuse H20N
Dimensions
178x135x161 mm
Weight
878±5 g
Protection Rating
IP44
Laser Safety
Class 1M (IEC 60825-1:2014)
Supported Aircraft
Matrice 300 RTK
Gimbal
Angular Vibration Range
±0.01°
Mount
Detachable
Controllable Range
Pan: ±320°
Tilt: -120° to +60°
Tilt: -120° to +60°
Mechanical Range
Pan: ±330°
Tilt: -132.5° to +68°
Roll: -90° to +60°
Tilt: -132.5° to +68°
Roll: -90° to +60°
Max Control Speed
Pan: 90°/s
Tilt: 90°/s
Tilt: 90°/s
Zoom Camera
Sensor
1/1.8″ CMOS; Effective Pixels: 4M
Lens
Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
Aperture: f/1.6-f/11
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Aperture: f/1.6-f/11
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Focus Mode
MF/AF-C/AF-S
Exposure Mode
Manual, Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
Photo: 8-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
ISO Range
Video: 100-102400
Photo: 100-102400
Photo: 100-102400
Video Resolution
2688×1512@30fps
1920×1080@30fps
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
1920×1080@30fps
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
Video Format
MP4
Video Caption
Supported
Max Image Size
2688×1512
Photo Format
JPEG
Wide Camera
Sensor
1/2.7″ CMOS; Effective Pixels: 2M
Lens
DFOV: 73.6°
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Mode
Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
Photo: 0.8-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
ISO Range
Video: 100-102400
Photo: 100-102400
Photo: 100-102400
Video Resolution
1920×1080@30fps
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
Video Format
MP4
Video Caption
Supported
Max. Image Size
1920×1080
Image Format
JPEG
Tele Infrared Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 12.5°
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞
Equivalent Digital Zoom
16x, 32x
Video Resolution
640×512@30fps
Video Format
MP4
Image Resolution
640×512
Image Format
R-JPEG* (16 bit raw included)
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Noise Equivalent Temperature Difference (NETD)
≤50 mK @ f/1.0
Temperature Measurement Method
Spot Meter, Area Measurement
Scene Range
-20° C to 150° C (High Gain)
0° C to 500° C (Low Gain)
0° C to 500° C (Low Gain)
Temperature Alert
Supported
FFC
Auto/Manual
Palette
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Wide Infrared Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 45.5°
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Equivalent digital zoom rate
4x
Video Resolution
640×512 @ 30 fps
Video Format
MP4
Image Resolution
640×512
Image Format
R-JPEG (16 bit raw included)
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Noise Equivalent Temperature Difference (NETD)
≤50 mK @ f/1.0
Temperature Measurement Method
Spot Meter, Area Measurement
Scene Range
-20° to 150° C (High Gain)
0° to 500° C (Low Gain)
0° to 500° C (Low Gain)
Temperature Alert
Supported
FFC
Auto/Manual
Palette
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Laser Range Finder
Wavelength
905 nm
Maximum Power
3.5 mW
Single Pulse Width
6 ns
Measuring Accuracy
± (0.2 m + target distance x 0.15%)
Measuring Range
3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)
Safety Regulation Level
Class 1M
Accessible Emission Limit (AEL)
304.8 nJ
Reference Aperture
18mm length, 18mm width (20.3mm diameter if equivalent to circular)
Max Laser Pulse Emission Power Within 5 Nanoseconds
60.96 W
Storage
Supported microSD Cards
Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
Supported File System
exFAT
Environment
Operating Temperature
-20° to 50° C (-4 to 122°F)
Storage Temperature
-20° to 60° C (-4 to 140°F)
