Zenmuse H20 Series

Learn More

“H” For Hybrid

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

For Hybrid

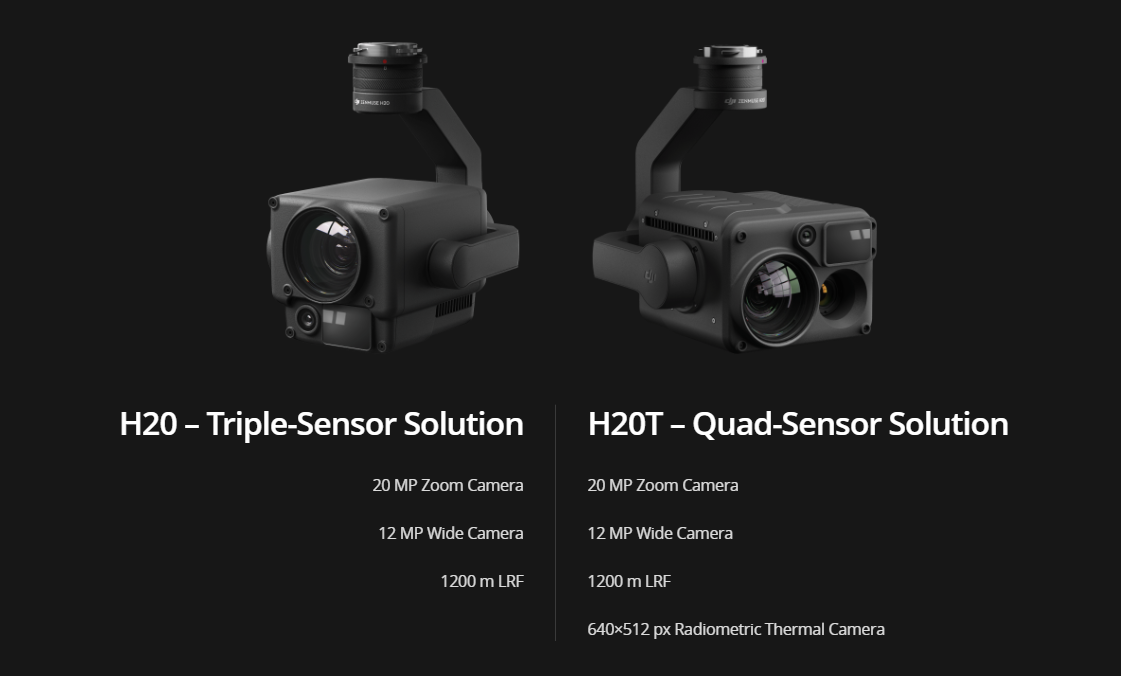

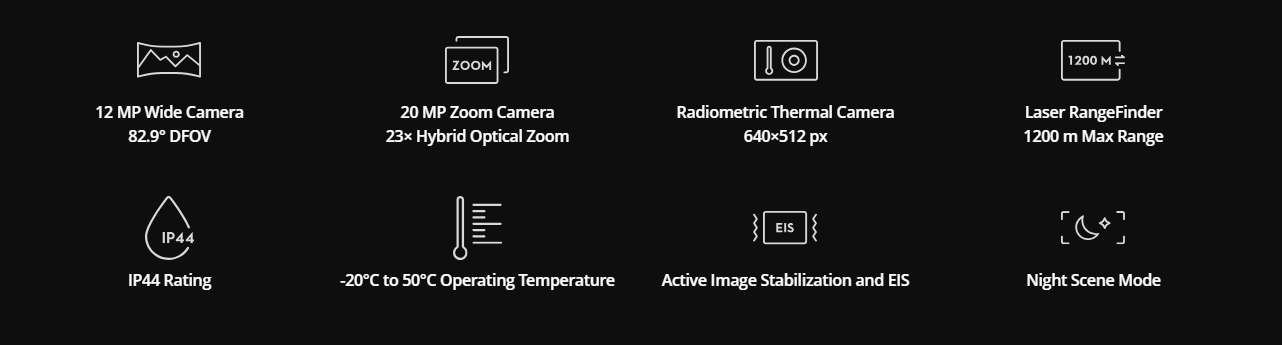

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

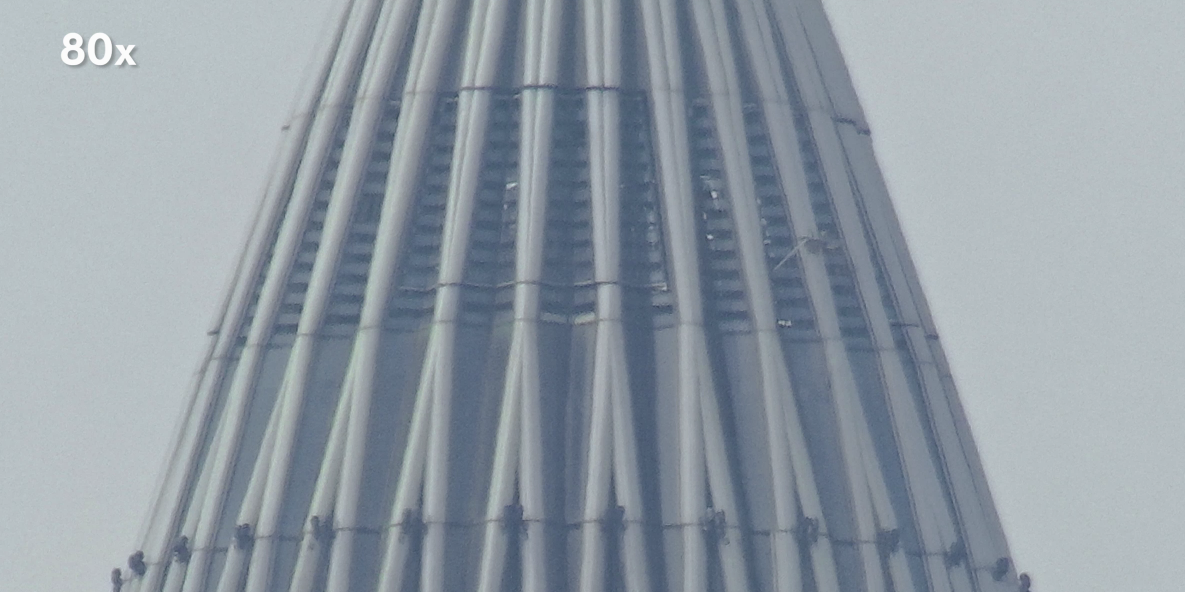

Multi-Sensor Payloads

See the full picture without missing any details wherever, whenever your mission takes place.

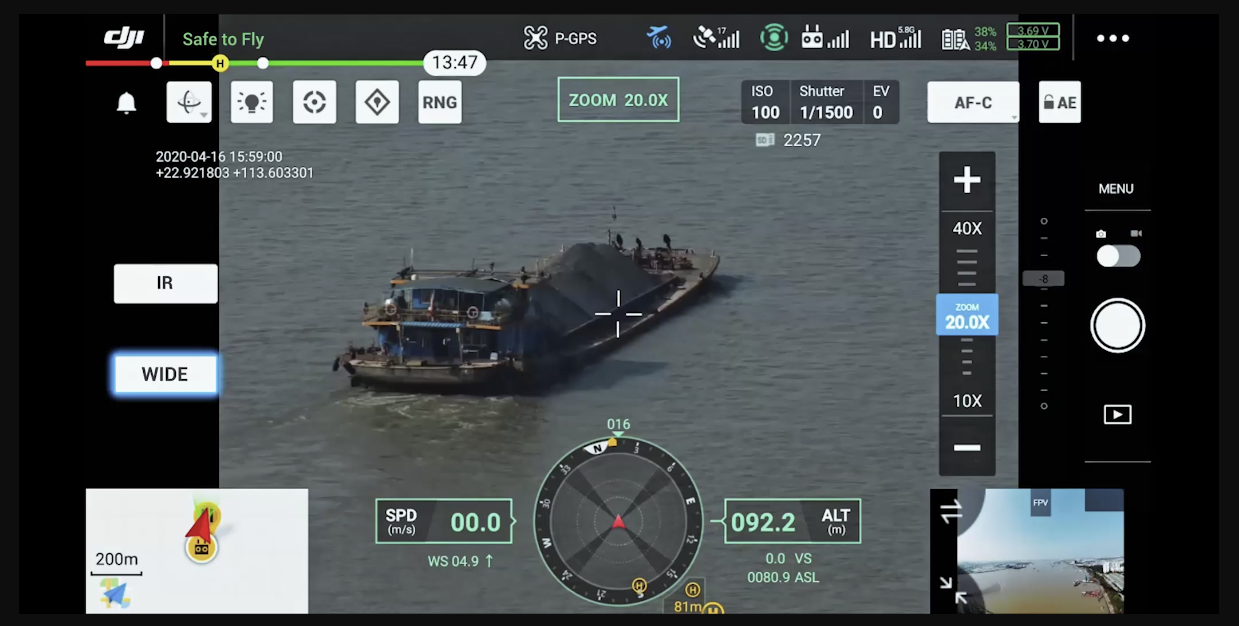

Seamless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

Seamless User Interface

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

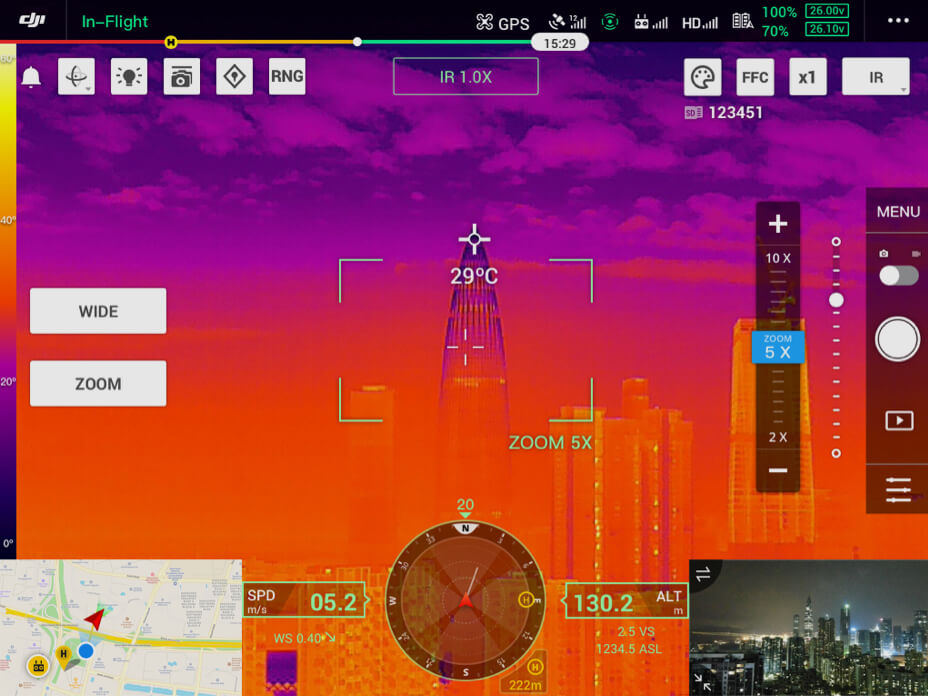

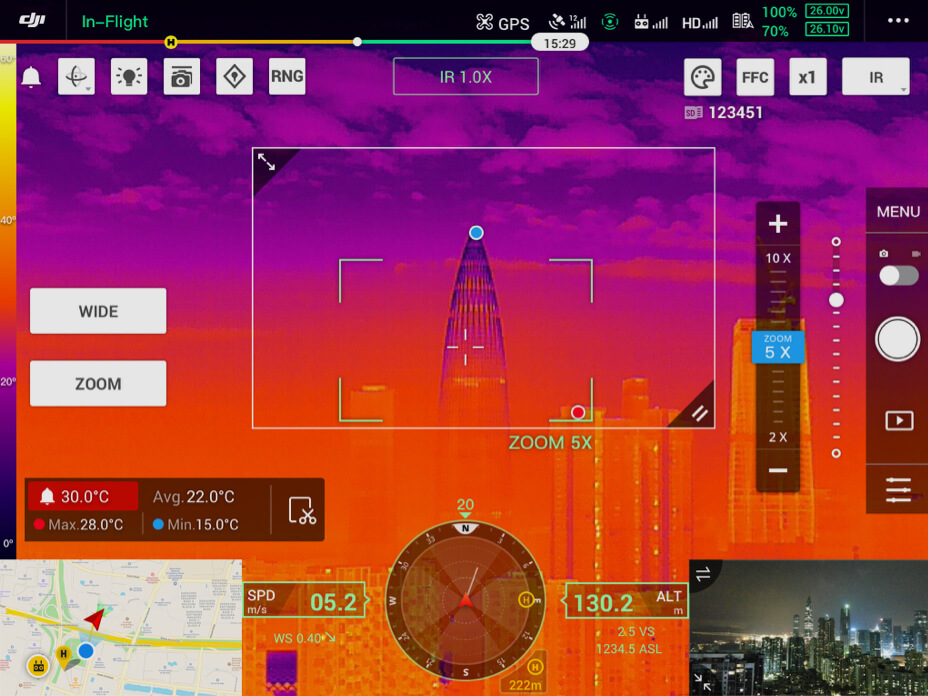

Accurate Temperature Measurement

Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

DJI Zenmuse H20 Series Overview

The DJI Zenmuse H20 Series is a versatile camera payload designed for aerial inspections, surveillance, and mapping. It integrates multiple sensors into one compact unit, providing high-resolution imaging capabilities that enhance operational efficiency for various industries, including public safety, agriculture, and infrastructure inspection.

Key Features:

  • Multi-Sensor Integration: Combines a 12 MP zoom camera, a 20 MP wide-angle camera, and a laser rangefinder, enabling comprehensive situational awareness and data collection.
  • 20x Optical Zoom: The zoom camera offers up to 20x optical zoom and 200x digital zoom, allowing users to inspect distant objects with clarity.
  • 4K Video Recording: Captures high-definition video at resolutions up to 4K, providing detailed visual documentation for inspections and assessments.
  • Laser Rangefinder: Measures distances up to 1,200 meters, offering precise location data to complement the visual information gathered.
  • Advanced AI Capabilities: Features intelligent tracking and recognition, enabling automated inspections and reducing the need for manual input.
  • Rugged Design: Built to withstand harsh environmental conditions, the Zenmuse H20 Series is IP44-rated for water and dust resistance.
  • Seamless Integration: Compatible with DJI’s Matrice 300 RTK drone, ensuring easy installation and efficient operation during aerial missions.
  • User-Friendly Interface: The intuitive interface allows for quick adjustments and seamless operation, catering to both seasoned pilots and beginners.

The DJI Zenmuse H20 Series is ideal for professionals seeking a reliable, all-in-one solution for aerial inspections and data collection, enhancing productivity and accuracy in various applications.

General

Weight

Zenmuse H20: 678±5 g
Zenmuse H20T: 828±5 g

Dimensions

Zenmuse H20: 150×114×151 mm
Zenmuse H20T: 167×135×161 mm

Ingress Protection Rating

IP44

Operating Temperature

-20° to 50° C (Temperature Measurement is only available between -10° to 50° C)

Storage Temperature

-20° to 60° C

Laser Safety

Class 1M (IEC 60825-1:2014)

Supported Aircraft

Matrice 300 RTK

Gimbal

Angular Vibration Range

±0.01°

Mount

Detachable

Controllable Range

Pitch: -120° to +30°
Yaw: ±320°

Mechanical Range

Pitch: -132.5° to +42.5°
Yaw: ±330°
Roll: -90° to +60°

Zoom Camera

Sensor

1/1.7″ CMOS, 20 MP

Lens

DFOV: 66.6°-4°
Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)

Focus Mode

MF/AF-C/AF-S

Exposure Mode

Auto, Manual

Exposure Compensation

±3.0 (1/3 increments)

Metering Mode

Spot metering, Center-weighted metering

AE LOCK

Supported

Electronic Shutter Speed

1 ~ 1/8000 s

ISO Range

Video: 100 – 25600
Photo: 100 – 25600

Video Resolution

3840×2160@30fps, 1920×1080@30fps

Video Format

MP4

Video subtitles

Supported

Photo Size

5184 × 3888

Photo Format

JPEG

Wide Camera

Sensor

1/2.3″ CMOS, 12 MP

Lens

DFOV: 82.9°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Exposure Mode

Auto

Exposure Compensation

±3.0 (1/3 increments)

Metering Mode

Spot metering, Center-weighted metering

AE LOCK

Supported

Shutter Speed

1 ~ 1/8000

ISO Range

Video: 100 – 25600
Photo: 100 – 25600

Video Resolution

1920×1080@30fps

Video Format

MP4

Video subtitles

Supported

Photo Size

4056 x 3040

Photo Format

JPEG

Thermal Camera (Zenmuse H20T)

Sensor

Uncooled VOx Microbolometer

Lens

DFOV: 40.6°
Focal length: 13.5 mm (equivalent: 58 mm)
Aperture: f/1.0
Focus: 5 m to ∞

Digital Zoom

1x, 2x, 4x, 8x

Video Resolution

640×512 @ 30 Hz

Video Format

MP4

Image Resolution

640×512

Image Format

R-JPEG (16 bit)

Pixel Pitch

12 μm

Spectral Band

8-14 μm

Noise Equivalent Temperature Difference (NETD)

≤50 mK @ f/1.0

Temperature Measurement Method

Spot Meter, Area Measurement

Scene Range

-40 °C to 150 °C (High Gain)
-40 °C to 550 °C (Low Gain)

Temperature alert

Supported

FFC

Auto/ manual

Palette

White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Rangefinder

Wave length

905 nm

Measurement range

3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)

Measurement accuracy

± (0.2 m + D×0.15%)
D is the distance to a vertical surface

Safety Regulation Level

Class 1M

Accessible Emission Limit (AEL)

327.84 nJ

Reference Aperture

18mm length, 18mm width (20.3mm diameter if equivalent to circular)

Max Laser Pulse Emission Power Within 5 Nanoseconds

65.6 W

Features

Hybrid Optical Zoom

23×（DFOV：4°，EQV：556.2mm）

Max. Zoom

200×（DFOV：0.5°，EQV：4800mm）

One Click Capture

One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously

Point to Aim

Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

Night Scene

Supported (zoom camera)

Timestamp

Including GPS, date, and time

Storage

Supported SD Card

MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)

Supported File Systems

FAT32 (≤ 32 GB), exFAT (> 32 GB)

Recommended Micro SD Cards

TOSHIBA EXCERIA PRO 32GB micro SD HC II
SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
TOSHIBA EXCERIA PRO 64GB micro SD XC II
SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
SAMSUNG_EVO_128GB_micro SD 3 XC I
TOSHIBA EXCERIA M303E 32GB micro SD HC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303 128GB micro SD XC I
SAMSUNG_EVO_64GB_micro SD 3 XC I
