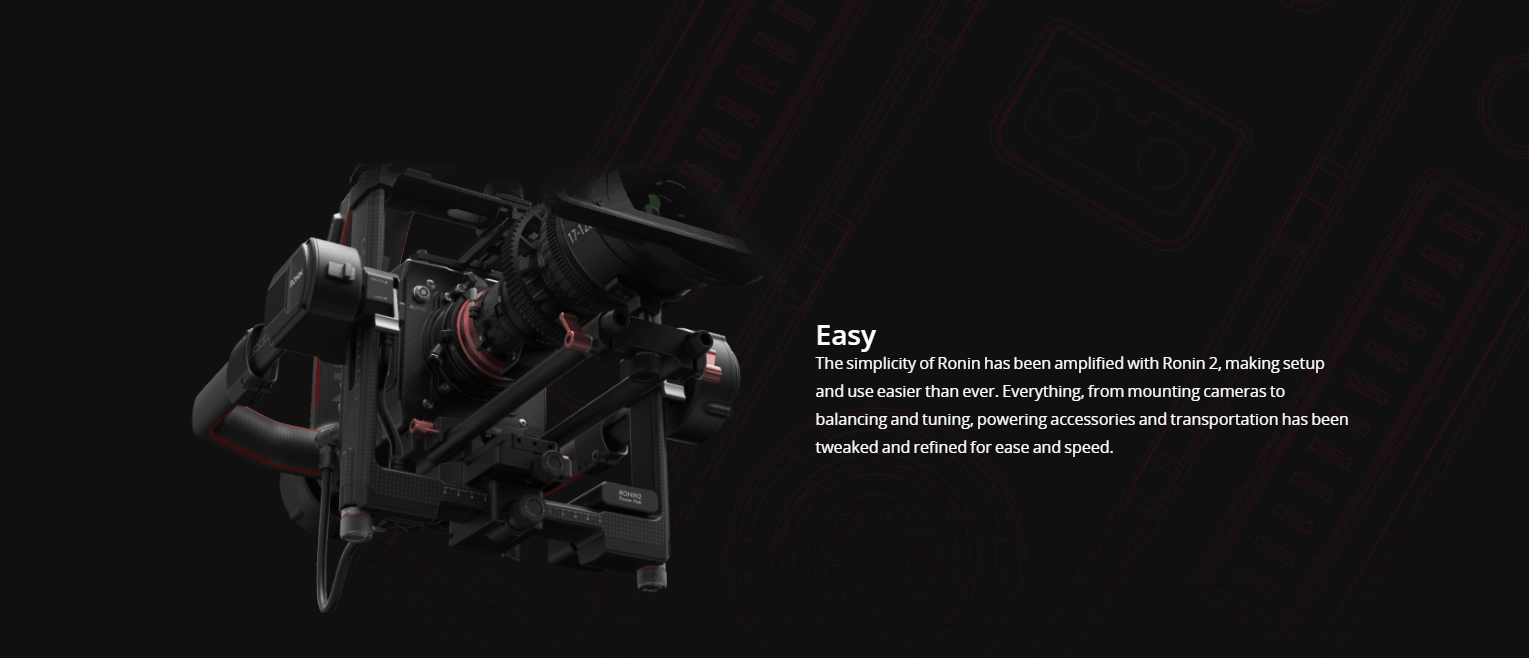

Ronin 2

Learn More

POWERFUL

Ronin 2 exists to let filmmakers capture the scene they see in their mind. Upgraded high torque motors allow it to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car and keep it moving smoothly in flight.

Integrated

Power systems are now tightly integrated into Ronin 2, capable of powering its motors and the attached camera and accessories without dangling cables or multiple power systems. As it uses a dual battery system, filmmakers can hot swap to keep the camera and accessories powered and maximize shooting time.

DJI Ronin 2 Overview

The DJI Ronin 2 is a professional-grade camera stabilizer designed for filmmakers and content creators. It offers advanced stabilization technology, robust payload capacity, and versatile operating modes, making it ideal for capturing smooth, cinematic shots in a variety of filming environments. Explore The Best DJI Ronin 2 price in Bangladesh.

Key Features:

  • 3-Axis Stabilization: Provides exceptional stability, eliminating unwanted vibrations and shakes for smooth, professional-quality footage.
  • High Payload Capacity: Supports a wide range of cameras, including large cinema cameras, with a maximum payload of up to 30 pounds (13.6 kg).
  • Built-In Wireless Transmission: Offers a seamless connection for remote monitoring and control, enabling better collaboration on set.
  • Extended Battery Life: Up to 12 hours of operation on a single charge, ensuring you can shoot for long periods without interruption.
  • Robust and Durable Design: Engineered for rugged use, the Ronin 2 is built to withstand challenging shooting conditions, including adverse weather.
  • Modular Accessories: Compatible with various accessories and add-ons, allowing for customization based on your shooting needs.
  • User-Friendly Interface: An intuitive touchscreen interface makes it easy to access settings and control functions on the fly.
  • Multiple Shooting Modes: Features various modes, including Follow, Lock, and Panorama, providing flexibility for different shooting styles.

The DJI Ronin 2 is a powerful tool for filmmakers looking to elevate their production quality, offering stability and versatility in a robust design.

General

Built-In Functions Operation Modes
Underslung Mode
Upright Mode
Briefcase Mode
Handheld, Car Mount, Aerial & Tripod ModeAxis Modes-3-axisPan-Lock

Built-in, independent IMU module
DJI Advanced 32-Bit ARM Processor
DJI Specialized Gimbal Drive Motors with Encoders
Dual Battery System
Bluetooth Module
D-Bus Receiver Supported
2.4 GHz/5.8 GHz Receiver
Temperature Sensors
Built-in Display
Built-in GPS
USB Type-C Connection
Power and Video Signal through Slip Ring

Mechanical & Electrical Characteristics

Working Current Static current: 300 mA (@22.8 V)
Dynamic current: 500 mA (@22.8 V)
Locked motor current: Max 15 A (@22.8 V)
Run Time 8 hours
2.5 hours (when powering gimbal, camera and accessories at the same time)
Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Weight Including handle bar: 14 lb (6.3 kg)
Excluding handle bar: 11 lb (5.0 kg)
Gimbal Dimensions Excluding handle bar: 350 mm (W) x 416 mm (D) x 530 mm (H)
Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)

Others

Guaranteed software updates until 2026/12/31

Peripheral

Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 250 mm
Maximum height measured from top of the camera base plate: 190 mm
Maximum width: 170 mm
Accessory Power Connections 14.4 V x 4 Camera Cage (Combined 8 A), 14.4 V x 2 Pan Motor (Combined 4 A), 14 V x2 P-Tap (8 A)
GCU Input Power Intelligent Battery: 4280 mAh-22.8 V
Connections 2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C
PC Assistant Software Requirements Windows 7 or above; Mac OS X 10.11 or above
Mobile Assistant Software Requirements iOS 9 or above; Android 4.4 or above

Working Performance

Load Weight (Reference Value) 30 lbs (13.6 kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 400°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±220°
Controlled Rotation Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±30°
